Description

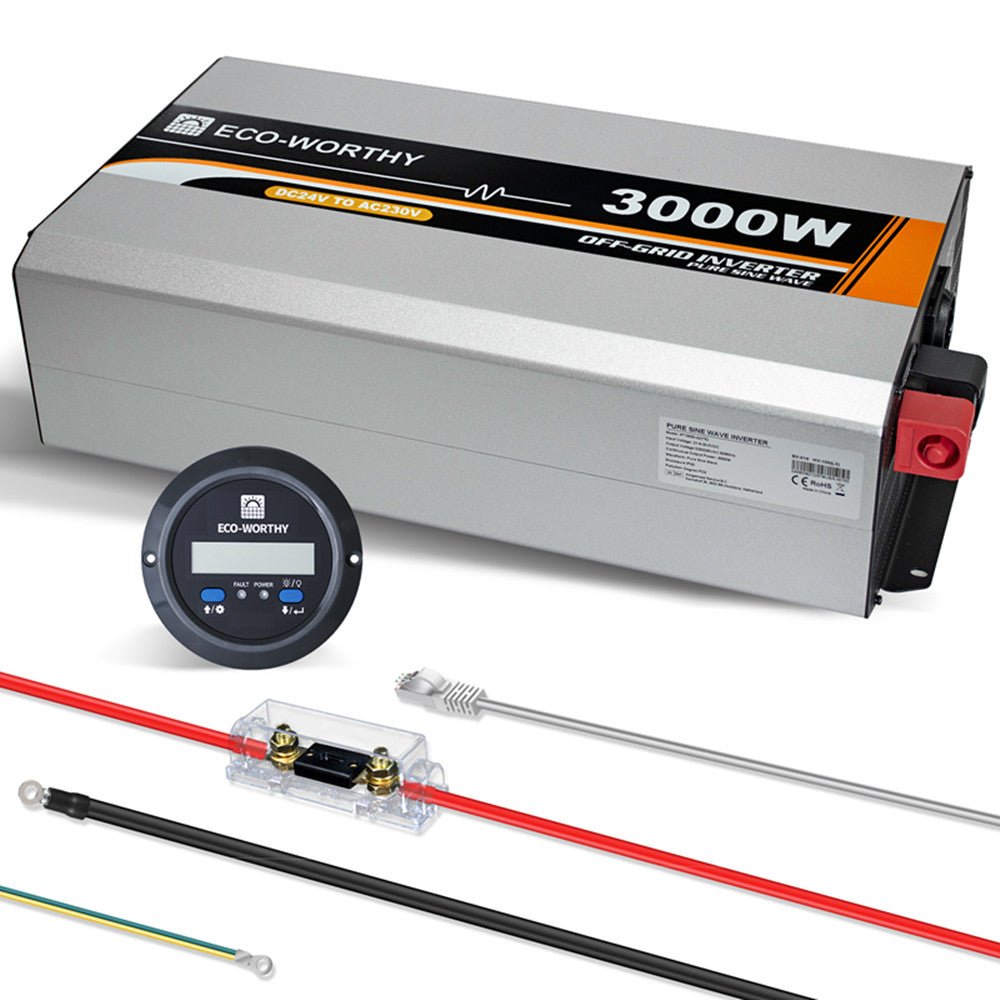

3000W Off Grid Pure Sine Wave Inverter for Stable AC Output
Continuous output power: 3000W
Surge power: 6000W
Surge current when power on: < 100A
Output voltage: 110VAC (±3%); 120VAC (-6%~+3%);240VAC (-9%~+3%)
Output frequency: 50/60Hz ± 0.2%
Output wave: Pure Sine Wave
Output distortion THD: THD≤3% (Resistive Load)
Rated input voltage: 24VDC
Input voltage range: 21.6 ~ 32.0VDC
Rated output efficiency: > 90.0%
Max. output efficiency: > 94.0% (30% loads)
Idle current: < 0.15A
No-load current: < 1A
Input terminal: M6
Dimension (L x W x H): 521 × 270 × 143mm
Mounting size: 495 × 145mm
Mounting hole size: Φ6mm
Net Weight: 8.5kg
