Description
Features
16-busbar solar cell configuration
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug and play junction box
Industry standard quick-connect cables work in series or parallel
Certified to withstand challenging environmental conditions
Excellent low-light performance on cloudy days, mornings and evenings
Installation
Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
Compatible with on-grid and off-grid inverters
Warranty
25-year output warranty
10-year workmanship warranty
Built-in Components
Panel leads (pair): 3 feet each
IP67-rated waterproof junction box
IP67-rated waterproof solar connectors
Bypass diodes built into the junction box
Specifications

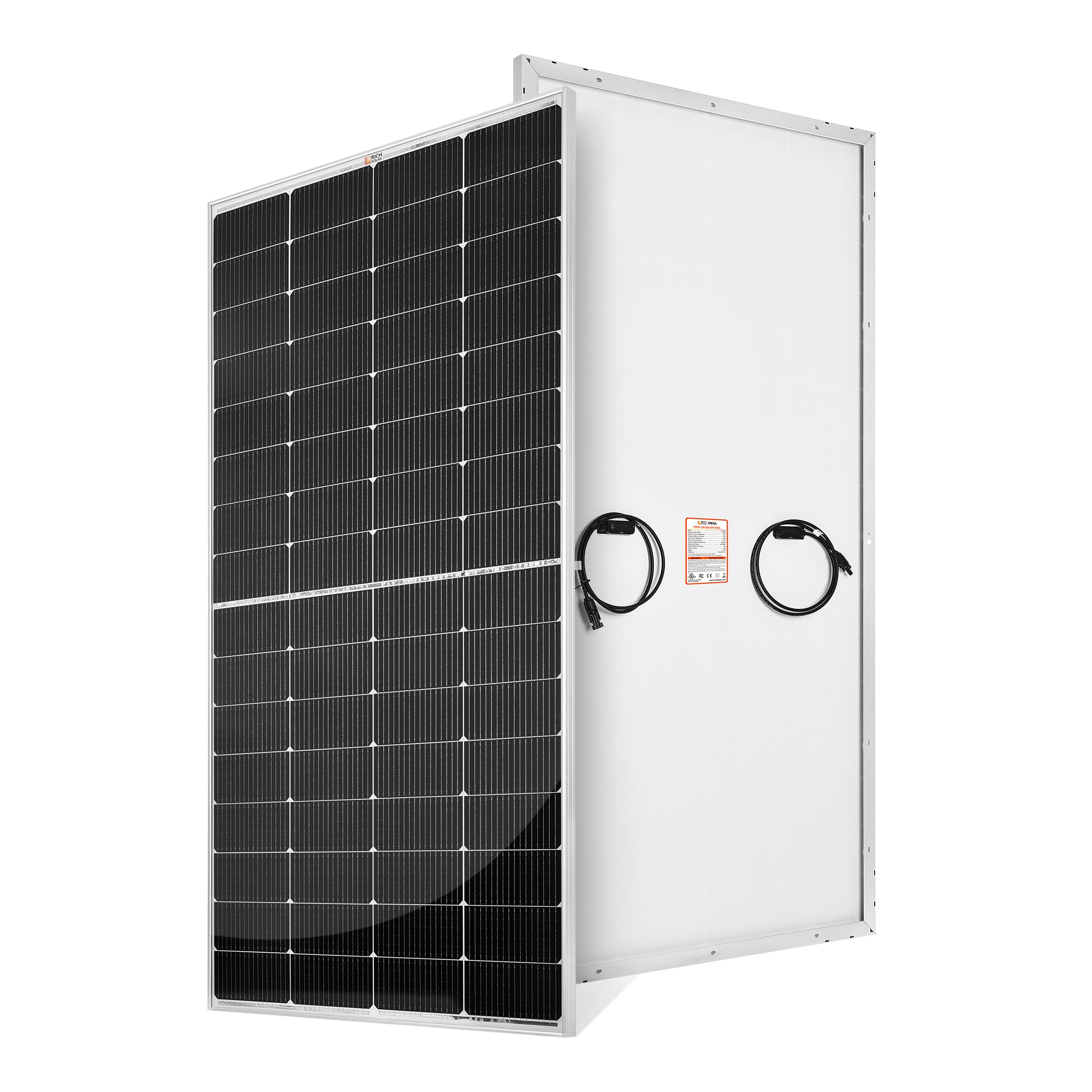

Model: RS-M250
Maximum Power (Pmax): 250W
Maximum Power Voltage (Vmp): 18.9V
Maximum Power Current (Imp): 13.2A
Open Circuit V
