Description
Features
Pure Sine Wave Inverter
Built-in MPPT solar charge controller
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload / Over temperature / short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Specifications
Inverter

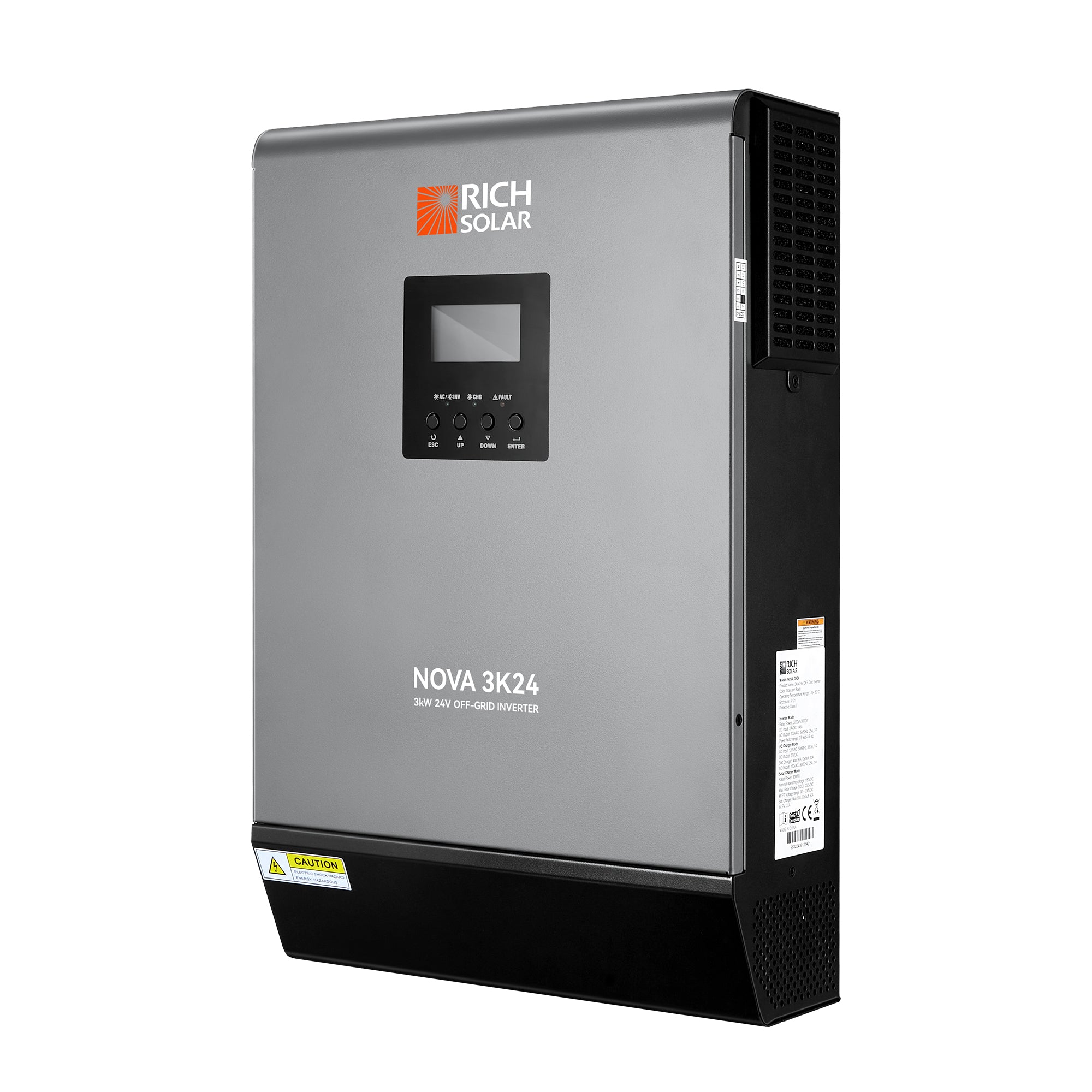

Model: NOVA 3K24
Rated Output Power: 3KVA / 3KW
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 120 VAC±5%
Output Frequency: 60Hz / 50Hz
Peak Efficiency: 91%
Surge Capacity: 2* rated power for 5s
Nominal DC Voltage: 24 VDC
Solar Input
Max. PV Array Open Circuit Voltage: 250 VDC
PV Array MPPT Voltage Range: 90 VDC~230 VDC
Max. In
