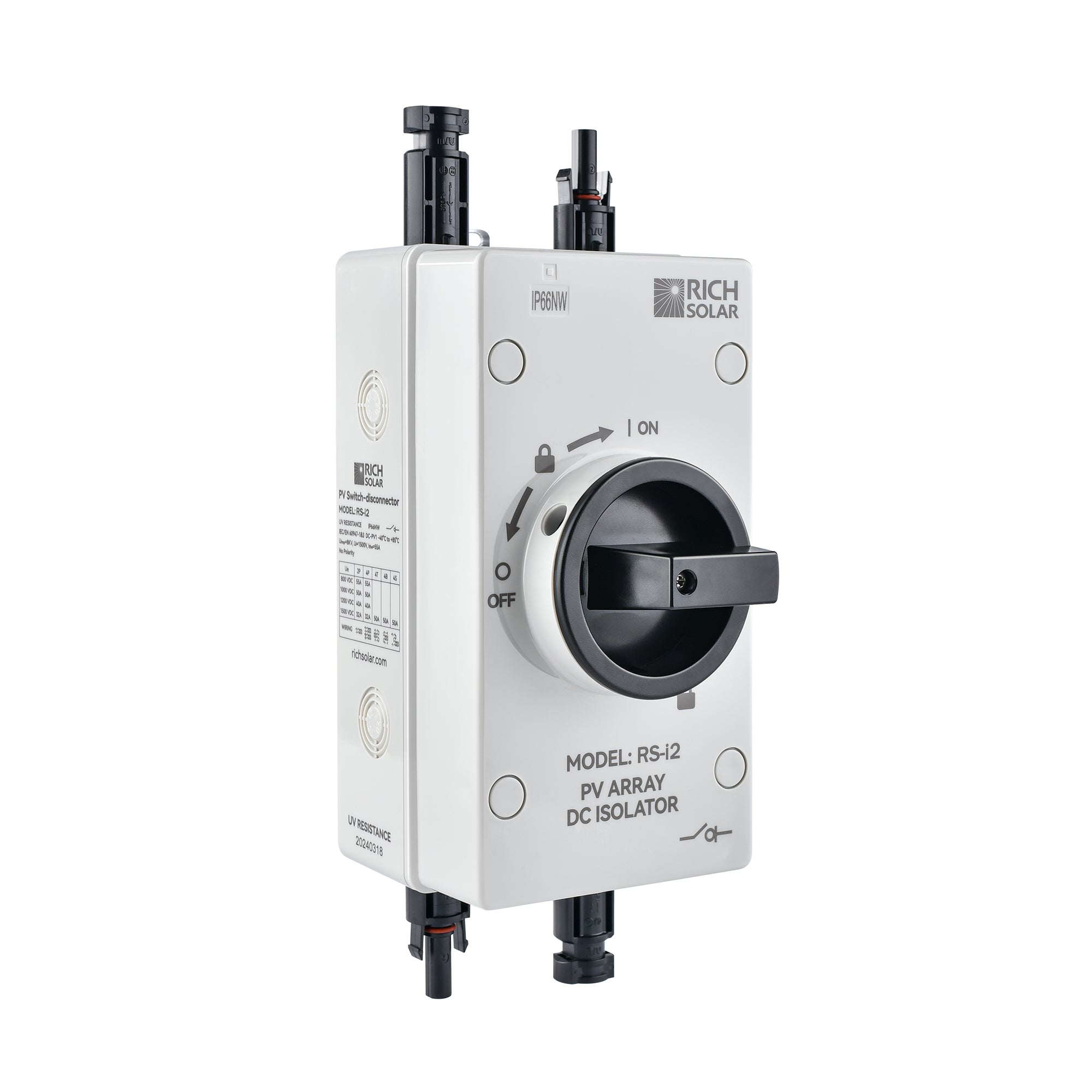

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install
Original price was: £78.99.£71.09Current price is: £71.09. Save 10% online · trade saves 30–50%
In stock — order by 2pm for next-working-day dispatch.
Features
Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
Outdoor rated.
Off and on-grid applications.
Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
2 poles and 1 string.
Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
Lockout option.
Output and input connections are built for easy setup and installation.
<
Specifications
Max. Rated Current: 55A
Ma
Secure checkout. Card, PayPal, Apple & Google Pay. Trade accounts can pay on 30-day terms.
- Visa
- Mastercard
- Amex
- PayPal
- Apple Pay
- Google Pay
Authorised UK stockist of Ring — genuine units, full manufacturer warranty.
- Next working day pallet & parcel delivery
- Genuine UK stock — never grey import
- Blind dropshipping for resellers
Description
Features
Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
Outdoor rated.
Off and on-grid applications.
Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
2 poles and 1 string.
Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
Lockout option.
Output and input connections are built for easy setup and installation.
<
Specifications
Max. Rated Current: 55A
Max. Rated Voltage: 1500VDC
Poles / Circuit: 2P in series
Supported PV Strings: 1 PV string
Impulse Withstand Voltage: 8 kV
Arc Suppression Time: <3ms
IP Rating: IP66NW
Operating Temperature: -40°F to +185°F (-40°C to +85°C)
Housing Material: Flame-retardant PC (UL94 V-0)
Dimensions (HxWxD): 9.8×3.8×4.3 in (249.4×97.6×110 mm)
Weight: 1.3lb (0.57kg)
Certifications: CE
Warranty: 3 years
Additional information
| Weight | 0.8 kg |
|---|
